Class 150 bronze 5K SDNR li qub qhib kaw qhov taw qhia

Nr. 98

Siab: 10K

Loj: DN15-DN65

Khoom siv: tooj dag, tooj dag

Hom: Globe valve, lub kaum sab xis valve

Media: Dej, Roj, Chav

Xa email rau peb

Product Detail

Khoom cim npe

Nta

Product Overview

Qhov ntau yam tuaj yeem tsim kho kom haum rau koj daim ntawv thov, nrog rau kev tsim kho lub cev, cov khoom siv, thiab cov yam ntxwv ntxiv tau ua kom tau raws li koj cov kev xav tau. Raws li ISO 9001 tau ntawv pov thawj, peb txais yuav txoj hauv kev los xyuas kom meej qhov zoo, koj tuaj yeem paub tseeb ntawm kev ntseeg tau zoo thiab kev sib khi ua tau zoo los ntawm kev tsim lub neej ntawm koj lub cuab tam.

Kev Xav Tau

· DESIGN Standard
· TEST: JIS F 7400-1996
· KAWM NTAWV/MPA
· LUB: 2.1br />
SEAT: 1.54-0.4

Specification

HANDWHEEL	FC 200
STEM	C3771 BD LUB
DISC	C3771 BD LUB
BONNET	C3771 BD LUB
Lub cev	BC 6
NPE PART	KHOOM

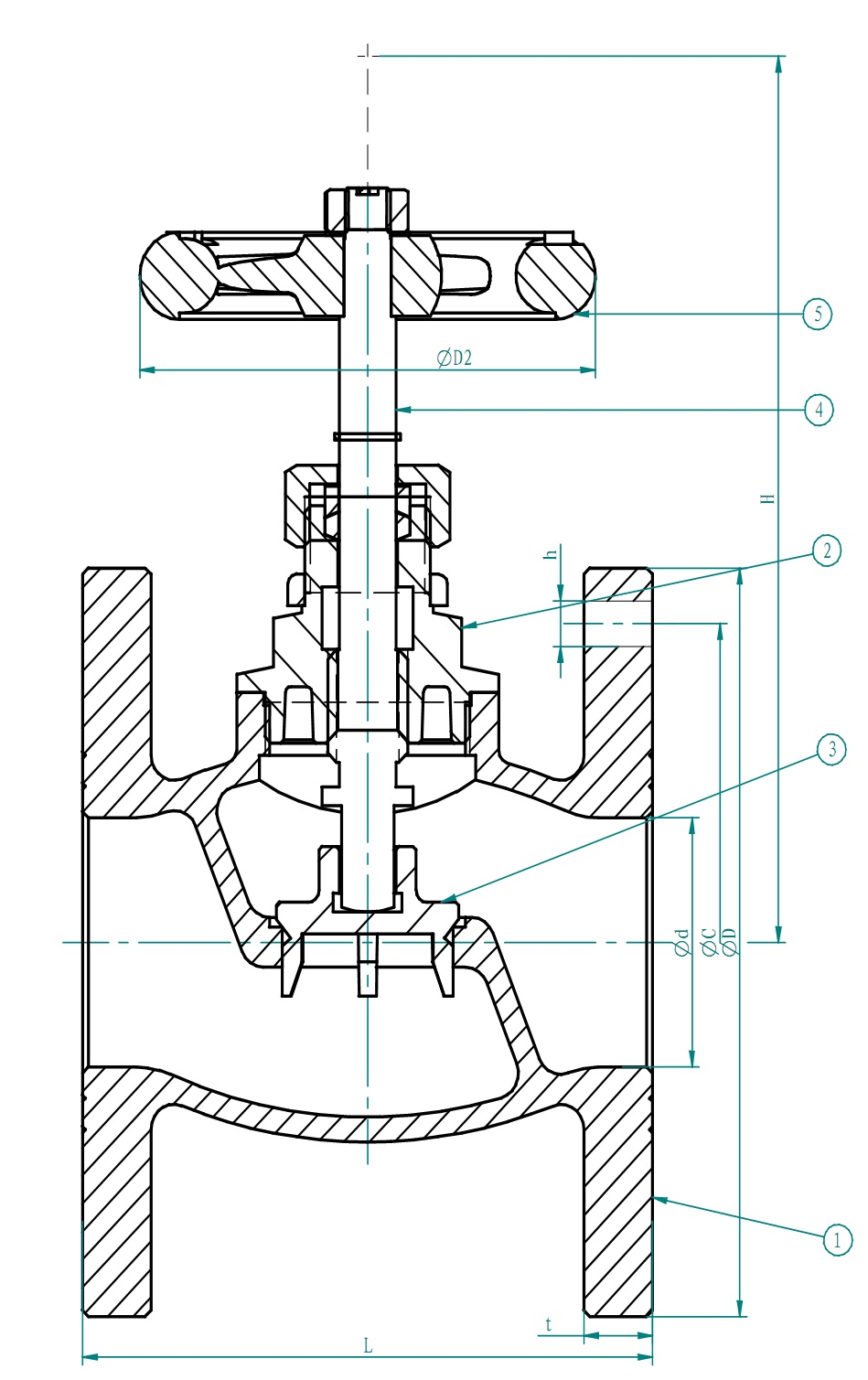

Cov khoom siv wireframe

Cov ntaub ntawv Dimensions

DN	d	L	D	C	TSIS MUAJ.	h	t	H	D2
15	15	60	95	70	4	12	8	75.5 ib	50
20	20	70	100	75	4	15	9	82.5 ib	65
25	25	80	125	90	4	19	10	88.5 ib	65
32	32	100	135	100	4	19	11	109	80
40	40	100	140	105	4	19	12	121	80
50	50	120	155	120	4	19	13	142	100
65	65	140	175	140	4	19	13	154	125
